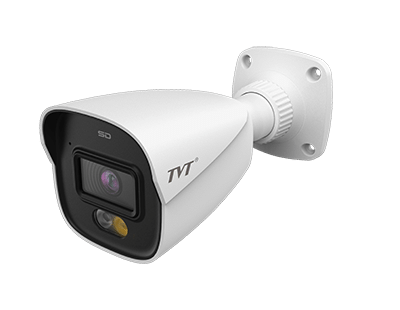

TVT Bullet IP 2MP, 2.8mm Lens, 20m LED 30m IR, SMD, WDR, IP67 895-37-HFW9420S5 L-E2.8 TVT0005

TVT Bullet IP 2MP, 2.8mm Lens, 20m LED 30m IR, SMD, WDR, IP67 895-37-HFW9420S5 L-E2.8 TVT0005

Call for Price

Features

H.265+ /H.265 /H.264+ /H.264/MJPEG coding
Max. resolution:2MP ( 1920 × 1080)
Auto day/night switch
3D DNR, HWDR, HLC, BLC, etc.
ROI coding
Support smart supplement light
20~30m white light view distance; 20~30m IR view distance
DC12V/PoE power supply
IP 67 ingress protection
Support three streams
Support remote monitoring by smart phones& tablet PCs with iOS and Android OS
Support NAT functionSupport SMD
Support line crossing detection, region intrusion detection,abandoned/missing object detection, video exception detection

Category: Tags: , , , , , , , , , Brand:

Description

Model TD-9421S4-C
Camera
Image Sensor 1 / 2.8 “CMOS
Image Size 1920×1080
Electronic Shutter 1/3s ~ 1 / 100000s
Iris Type Fixed Iris
Min. Illumination 0.008 lux @F1.6, AGC ON; 0 lux with illumination on
Lens 2.8mm@F1.6, H.FoV:107°;V.FoV:56 °; D.FoV:126 °
3.6mm@F1.6, H.FoV: 89 °; V.FoV:47.5°; D.FoV:104 °
Focus Fixed
Lens Mount M12
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Digital NR Yes
S/N Ratio ≥50dB
Angle Adjustment Pan: 0~360° ; Tilt: 0°~80°; Rotation: 0°~360°
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264
Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.265 Compression Standard Main Profile@Leve4.1 High Tier
Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, VGA (640× 480), 480× 240, CIF
Main Stream 1080P/720P (60Hz: 1~30fps; 50Hz: 1~25fps)
Sub Stream D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Third Stream D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
Audio Compression G711A/U
ROI Each ROI to be configured separately
Interfaces
Network RJ45 (10/100 Base-T)
Video Output No
Audio 1CH audio input; 1CH built-in MIC
Storage Built-in micro SD card slot, up to 256GB
Reset Yes
Functions
Remote Monitoring Web browser /NVR/NVMS/Mobile APP
Web Browser Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+
Online Connection Support simultaneous monitoring for up to 6 users;
Support multi-stream real time transmission
Network Protocol TCP, UDP, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, IPv4, IPv6,
SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, NAT, QoS, ICMP, IGMP
Interface Protocol ONVIF
API&SDK Yes
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, video exception
 Intelligent Video Detection
(IVD）		 Line crossing/region intrusion (human/vehicle classification), abandoned/missing object detection
General Function Watermark, IP address filtering, video mask, heartbeat, ANR, cloud upgrade, smart supplement light,
corridor pattern, disarming
PoE Yes (IEEE802.3af)
Supplement Light Range IR range: 20 ~ 30 m; white light range:20 ~ 30 m
Ingress Protection IP67
Security Video encryption, firmware encryption, HTTPS encryption,  configuration encryption, illegal login lock,
IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API
DORI Distance
Lens Detect Observe Recognize Identify
2.8mm 41m(133ft) 16m(53ft) 8m(27ft) 4m(13ft)
3.6mm 50m(163ft) 20m(65ft) 10m(33ft) 5m(16ft)
Others
Power Supply DC12V/PoE
Power Consumption DC12V: < 4.4W; PoE: <5.8W
Storage Conditions – 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions – 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm ) 167.4 × 75.1 × 74.7
Weight ( net ) Approx. 0.45KG
Material Aluminum alloy body
Installation Ceiling mounting; wall mounting
Certificate CE, FCC
Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU) , and REACH(EC1907/2006)
