TVT 8 Channel CCTV Kit 1x NVR POE H265 HDMI P2P Ai 1HDD-10TB 4k with 4x 2MP Bullet IP Cameras 30m TVT0001

TVT 8 Channel CCTV Kit 1x NVR POE H265 HDMI P2P Ai 1HDD-10TB 4k with 4x 2MP Bullet IP Cameras 30m
TVT 8 Channel CCTV Kit 1x NVR POE H265 HDMI P2P Ai 1HDD-10TB 4k with 4x 2MP Bullet IP Cameras 30m

Call for Price

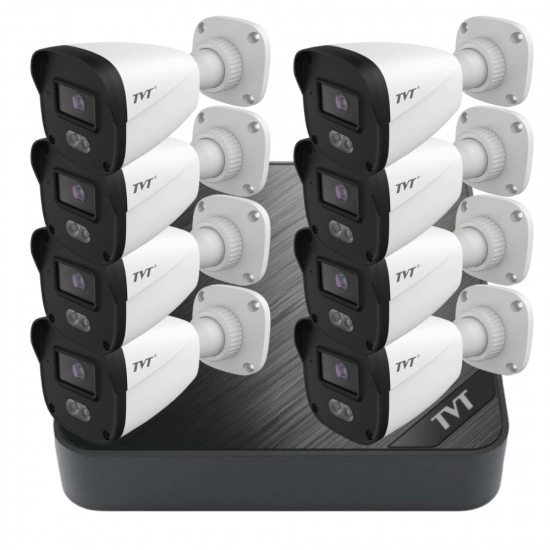

The TVT Video Surveillance set includes 8 pieces of High-Quality IP POE video cameras with a resolution of 2 megapixels (FULL HD) and night vision up to 30 meters bullet. The cameras have a 2.8 mm lens and provide a clear image with a horizontal viewing angle of 93 °. They are designed for outdoor and indoor installation, thanks to their UV protected PVC housing and IP67 waterproof housing, guaranteeing their durability in weather conditions.

The recording device in the set is an 8-channel network POE video recorder NVR, which is able to work with IP cameras with a resolution of up to 8MP. Thanks to the free mobile application for Smartphones for IOS and ANDROID SUPERCAM PLUS, you can check the recordings from your surveillance system and monitor your video cameras in real time from anywhere in the world. The WINDOWS-based NVMS LITE software for monitoring, recording and visualization of video surveillance systems from TVT is also free.

Together with the video surveillance kit you will also receive instructions for setting up and starting the video surveillance kit. To download the instructions, click here.

Category: Tags: , , , , , , , , , , Brand:

Description

Network IP PoE camera. 1/3″ progressive scan CMOS image sensor with 2Mp resolution (1920×1080 25fps). 2.8mm lens (angle 93°) fixed. Dual Light night vision 30m, Smart IR (black/white) and 20m Smart LED (color); with automatic or manual switching. Compression H.265+ / H.265 / H.264 + / H.264. IR cut Filter, D-WDR, 3D DNR, AGC, Auto White Balance, BLC, HLC, Defog filters. Intelligent functions – Motion detection, Perimeter entry, Line crossing. Remote access and administration via Windows: NVMS2.0 / mobile APP: SuperCamPlus. ONVIF protocol. Output ports – RJ-45 PoE. Built-in microphone. PVC housing UV protected for outdoor installation (IP67). Power supply only via PoE (without DC jack) max 5W, built-in lightning protection. Compatible with bases: TD-YXH0103, TD-YXH0104, TD-YXH0301

– Manufacturer: TVT;

– Series: Lite;

– Model: TD-9420S5L-D(D/PN/AW2), Bullet

– Camera type: Network IP PoE camera;

– Sensor: 1/ 3″ CMOS image Sensor;

– Resolution: 2Mp;

– Frames per second: 25fps;

– Effective pixels: 1920×1080;

– Lens: 2.8mm fixed;

– Horizontal viewing angle: 93°;

– Night vision type: Dual Light – Smart IR (black/white) and Smart LED (color) with automatic or manual switching;

– Night vision range – up to 20 meters;

– Minimum light sensitivity: 0.02 lux @F2.2, AGC ON; 0 lux (Illumination on)

– Audio: Built-in microphone (Audio Compression – G711A/U);

– Filters: IR cut Filter, D-WDR, DNR, AGC, BLC, HLC. Defog;

– Compression: H.265+ / H.265 / H.264 + / H.264;

– Main Stream: 1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps)

– Sub Stream: D1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

– Bit Rate: 64 Kbps ~ 3 Mbps;

– Intelligent Functions: Motion Detection, Line Crossing, Zone Entry, Exclusion;

– Remote Access: Windows: NVMS2.0 / mobile APP: SuperCamPlus;

– Network Protocol: UDP, IPv4, IPv6, DHCP, DDNS, NTP, SNMP, RTSP, 802.1x, UPnP, SMTP, FTP, HTTP, HTTPS, QoS

– Interface Protocol: ONVIF;

– Signal-to-Noise Ratio: ≥52dB (AGC OFF);

– Connector: 1x Network: RJ-45 PoE

– Power Supply: PoE only (without DC jack)

– Consumption: < 5W;

– Lightning Protection: Built-in 4KV TVS lightning protection;

– Operating Temperature: from -20°C – to +55°C;

– Housing Material: PVC housing UV protected, waterproof;

– Mounting: For outdoor surface mounting;

– Protection Factor: IP67;

– Color: White;

– Compatible with bases: TD-YXH0103, TD-YXH0104, TD-YXH0301;
