DAHUA ALARM PANEL DHI-ARC3800H- W2(868) Panel HUB2 wifi/ethernet ALEQD0002

DAHUA ALARM PANEL DHI-ARC3800H- W2(868) Panel HUB2 wifi/ethernet ALEQD0002

$224.53 Including 15.5% VAT

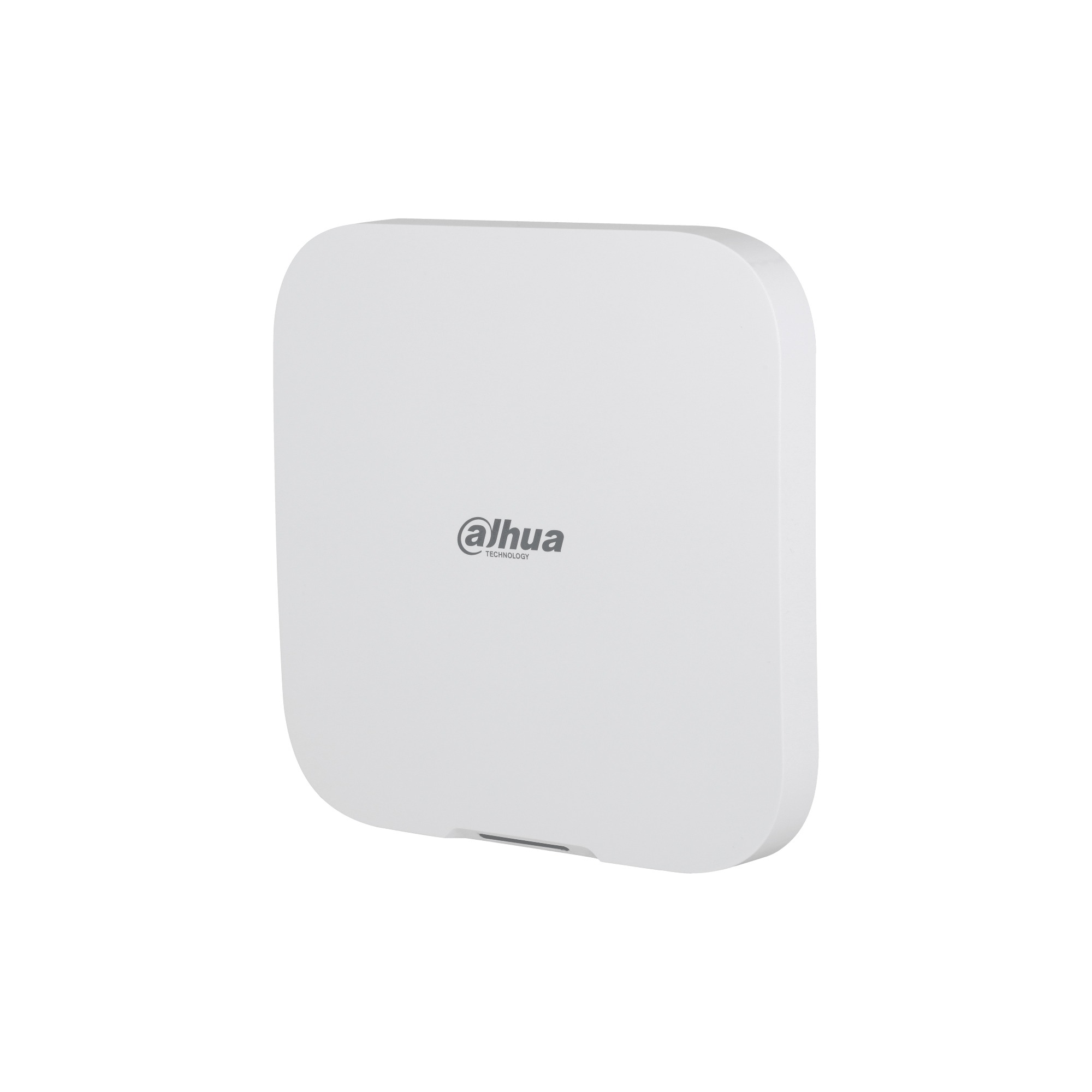

ARC3800H-W2(868) Dahua Wireless Alarm Hub 2.

  • Supports alarm video verification through integration of the IPC with the hub.
  • Images can be remotely and quickly transferred from the PIR-Cam to the device.
  • Features voice call alarm.
  • Supports wired and AP network configuration methods, which makes it easier to add the hub to apps and to switch to the hub’s network.
  • Supports multi-network redundancy for Ethernet and Wi-Fi networks to ensure the network remains stable and reliable.
  • Supports two-way communication and frequency hopping to make communication with wireless peripherals stable and reliable.
  • Features cloud update. You can also remotely update the device and wireless peripherals on the mobile app.
  • Offers a dual backup system, and uses auto recovery when an update fails.
Category: Tags: , , , , , , , , Brand:

Description



Port
Wireless Zone

150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)
Network Mode

Ethernet and Wi-Fi
Network Port

1 RJ-45, 10 Mbps/100 Mbps Ethernet port.
Storage Battery

One built-in 4,750 mah rechargeable lithium battery.
Video & Audio
Video Input

8-ch IPC, which only supports the upload of alarm videos.
Audio Output

1 channel
Volume Control

Yes
Voice Broadcast

Local speaker194.40
Function
Indicator Light

The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.
Button

Includes a reset button, voltage button and AP switch button.
Video Linkage

Yes
Offline Cache

Stores up to 50 alarm messages.
Arm and Disarm

App, keyboard, remote control, card, scheduled arming and disarming.
Remote Update

Cloud update
Low Battery Detection

Yes
Tamper

Yes
User Management

33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users
Logs

Up to 5, 000 entries
Transmission Protocol

SIA, SoftGuard
Wireless
Carrier Frequency

868.0–868.6 MHz
Transmitter Power (EIRP)

Limit 25 mW
Communication Mechanism

Two-way
Communication Distance

Up to 2,000 m (6,561.68 ft) in an open space.
Encryption Mode

AES128
Frequency Hopping

Yes
General
Language

English
Power Supply

100–240 VAC, 50/60 Hz
Standby Time

The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud.
Power Consumption

220 VAC 80 mA(Max)

220 VAC 40 mA(Standby)
Operating Temperature

When battery is not charging: –10 °C to +55 °C (+14 °F to +131 °F)

When battery is charging : 0 °C to +45 °C (+32°F to +113 °F)
Operating Humidity

10%–90% (RH)
Product Dimensions

174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H)
Net Weight

510 g (1.12 lb)
Gross Weight

860 g (1.90 lb)
Installation

Supports wall mount and desktop mount installation.
Casing Material

PC + ABS
Certifications

CE

EN 50131-1:2006+A1:2009+A2:2017+A3:2020

EN 50131-3:2009

EN 50131-6:2017+A1:2021

EN 50131-5-3:2017

EN 50131-10: 2014

EN 50136-2: 2013+A1:2023

Security Grade 2

Environmental Class II

ATS category: SP2/DP2
Anti-corrosion Level

Basic Protection
Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity

10%–90% (RH)
Packaging Dimensions

254 mm × 211 mm × 61 mm (10.00” × 8.31” × 2.40”) (L × W × H), standalone in the inner box

524 mm × 508 mm × 442 mm (20.63” × 20.00” × 17.40“) (L × W × H), protective case194.40
Wi-Fi
Wi-Fi Standard

IEEE 802.11b/g/n
Wi-Fi Frequency Range

2400-2483.5 MHz
Wi-Fi Power Transmission

≤20 dBm@2400-2483.5 MHz
