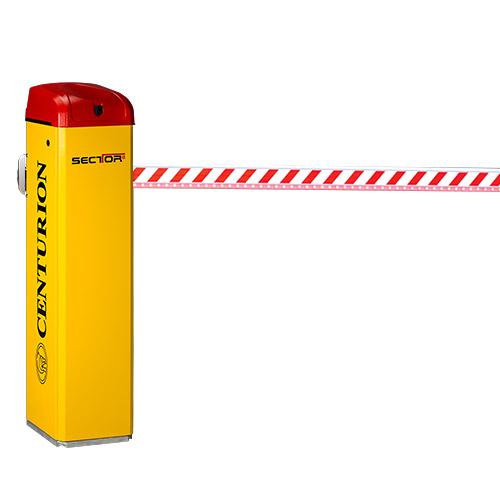

Centurion Traffic Barrier SECTOR II Boom 6m Mild Steel, Loop Detector + Pole Part No: GA84-6 AXEC0166C

Centurion Traffic Barrier SECTOR II Boom 6m Mild Steel, Loop Detector + Pole Part No: GA84-6 AXEC0166C

$3,522.75 Including 15.5% VAT

  • DC Barrier 6m
  • Mild Steel
  • Includes SA Loop Detector and Pole
Categories: , Tags: , , , , , , , Brand:

Description

Safe and cost-effectively high-duty vehicular access control to roadways 6 metres wide. The SECTOR is powered by a beefy custom-built DC motor and gearbox and can raise up to a six meter boom pole at a blistering pace of less than 3 seconds.

Mechanical Features

  • Battery backup
  • High-volume capability – up to 2300 operations per day for high-volume applications
  • Very robust housings with varying degrees of corrosion protection for inland, coastal and marine environments
  • Easy boom pole adjustment
  • Onboard Nova Code-Hopping Receiver
  • Receiver Storage Capacitor 500 Buttons
  • Mass of Unit Packaged 52kg
  • Packaging Dimensions (HxWxL): 1250 x 350 x 440mm

Electrical Features

  • LCD user interface for simple setup
  • Diagnostic screens for easy maintenance
  • Smooth, intelligent speed control – set the pace for raising and lowering according to individual site requirements
  • Rapid boom pole raise (6 metre version < 3 seconds) can be slowed down if required
  • Integrated ChronoGuard timer technology (a world first) – wide range of Time-barring and Auto-activation features
  • Barrier Raise and Lower inputs
  • Memory and non-memory barrier activation
  • Full configuration of barrier operating parameters including independent pole raise and lowering speeds, ramp-up and ramp-down angles
  • Automatic lowering
  • Multiple Operating Profiles
  • Onboard multichannel CentSys code-hopping receiver with the ability to:
    • Learn transmitter buttons to specific functions (e.g. Barrier Raise, Barrier Lower, etc.)
    • Selectively delete specific transmitters that have been lost or stolen
    • Automatically learn transmitters into the system (Autolearn)
    • Automatically delete transmitters that are no longer in use (Delete-Not-Present)
  • Multichannel controller with integrated ChronoGuard timer technology (a world first)
  • Free-exit facility using an inductive loop detector or photocells
  • Remote boom pole status indicator (Pole Position, Power Failure, Low Battery, Multiple Collision Detection and Security Light Status indication)
  • Courtesy/Pillar Light Timer with adjustable duration
  • Fully configurable Pre-delays with Multi-modal Pre-flash
  • Safety/Closing Photocells input with beam functional test
  • Lock/Emergency Stop input
  • Ticket Vend Interlock which enables connectivity to a ticket vending machine

Kit includes

  • Operator with Epoxy Coated Zinc Electroplated Mild Steel Casing
  • Controller
  • 2A SM Charger
  • 7Ah Battery
  • 6m Boom Pole
  • Shroud
